V10 / V10F Moving in Music Life in Motion

V10 / V10F

Moving in Music, Life in Motion

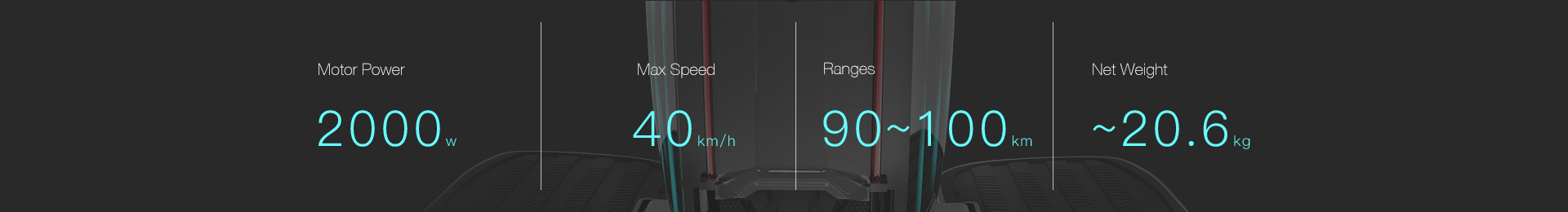

Motor Power 2000W,Max Speed 40km/h,Ranges 90~100km,Net Weight ~20.6kgMotor Power 2000W,Max Speed 40km/h,Ranges 90~100km,Net Weight ~20.6kg

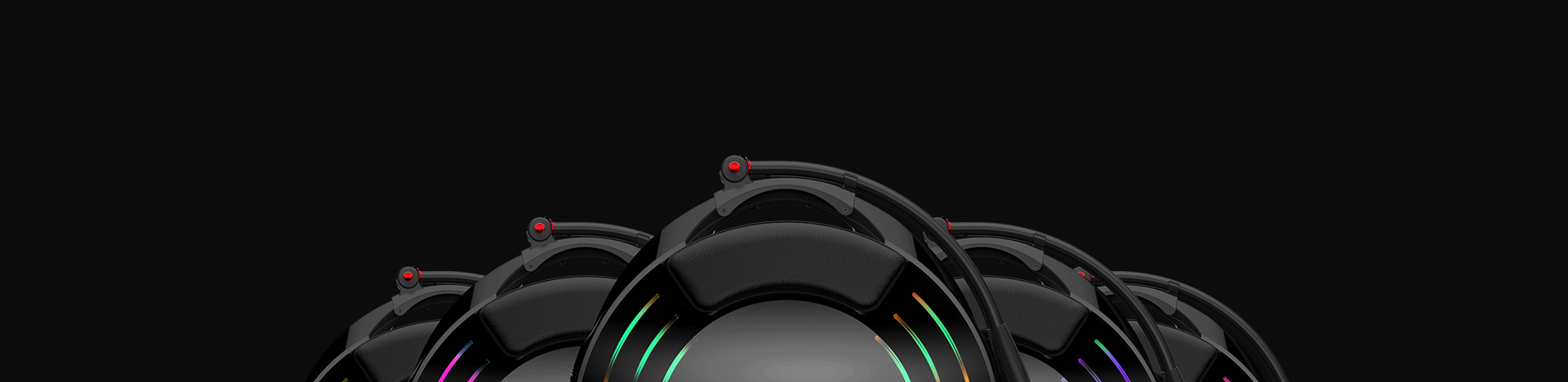

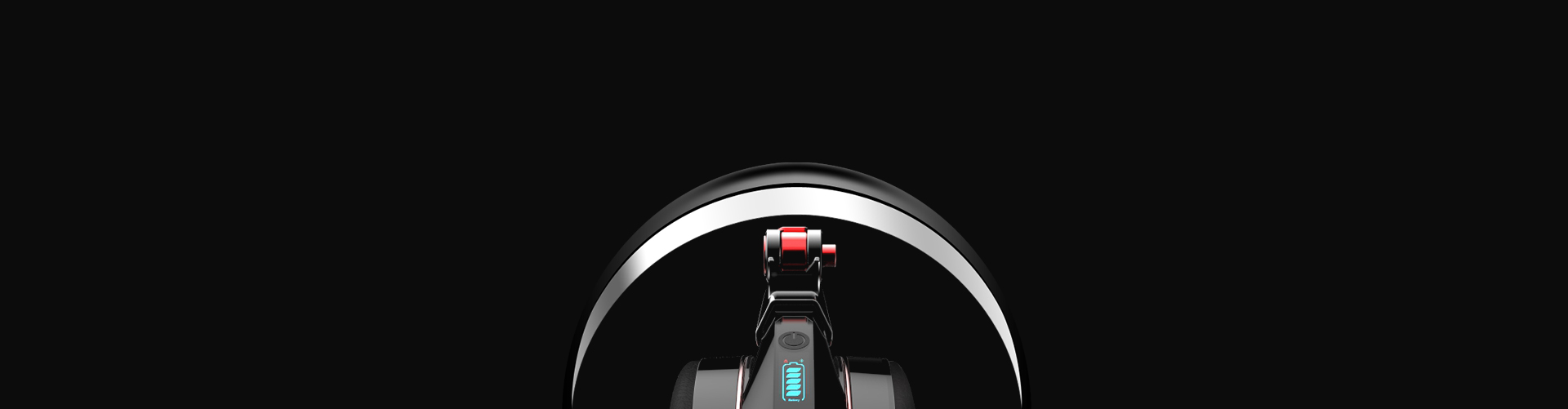

Thousands of Iridescent Colors, More Choices for You to DIY Your LampsEvery V10 is Different, Just Decorate Your Mood and Trip via INMOTION APP

Thousands of Iridescent Colors, More Choices for You to DIY Your Lamps
Every V10 is Different, Just Decorate Your Mood and Trip via INMOTION APP

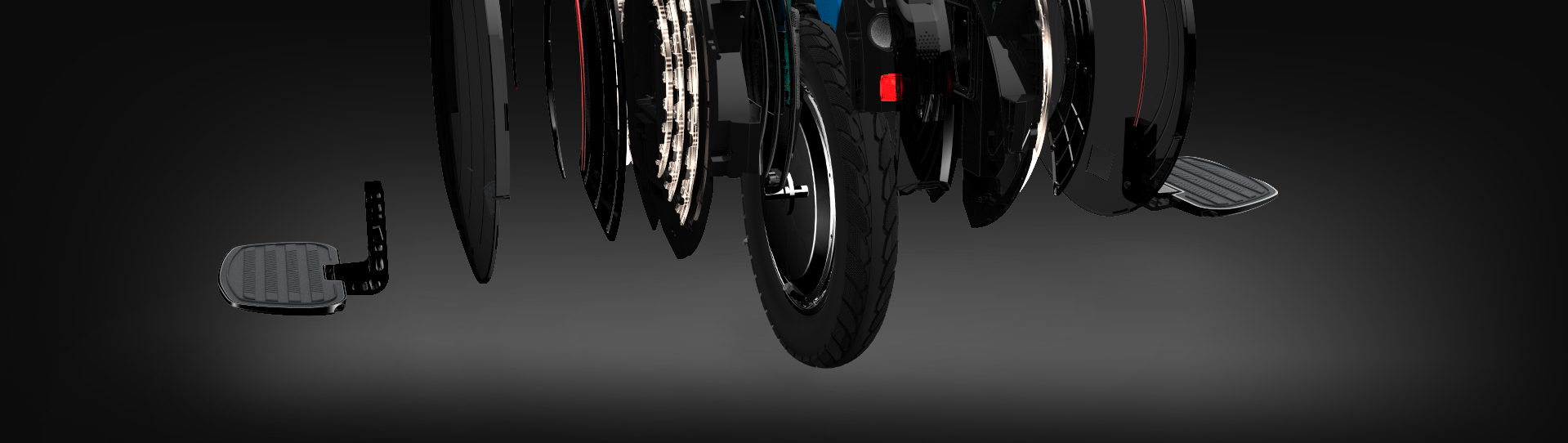

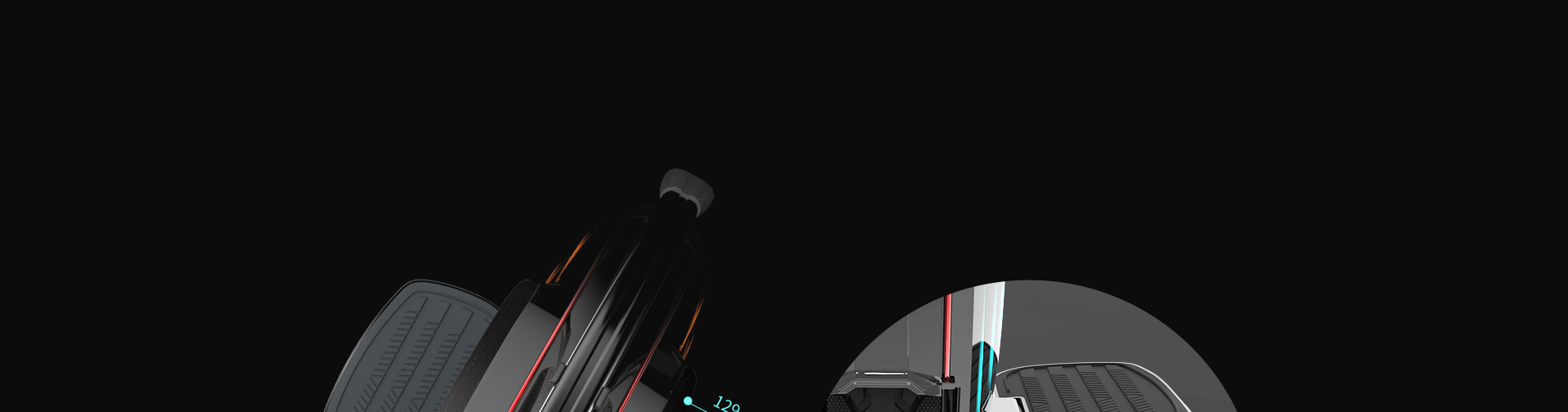

Magnalium Pedals with Silicone Rubber, Larger Contact Area to Make Your Feet Comfortable Never Worry about the Extra Long RidesMagnalium Pedals with Silicone Rubber, Larger Contact Area to Make Your Feet Comfortable Never Worry about the Extra Long Rides

Magnalium Pedals with Silicone Rubber, Larger Contact Area to Make Your Feet Comfortable
Never Worry about the Extra Long Rides

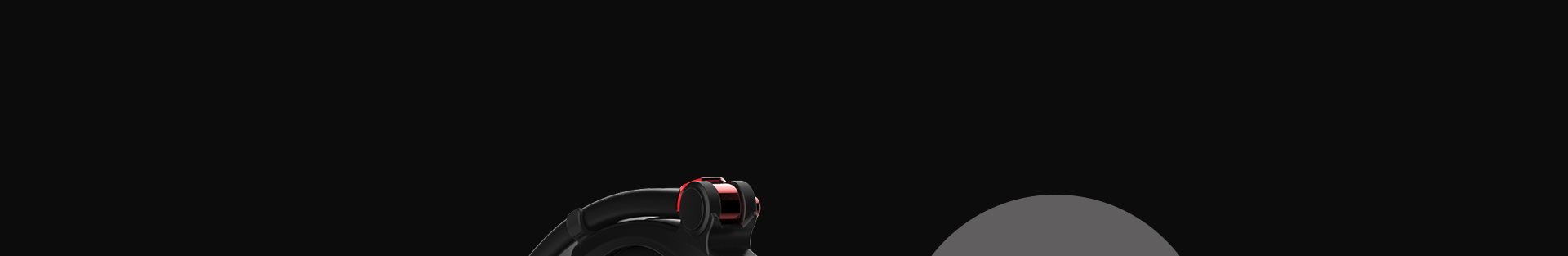

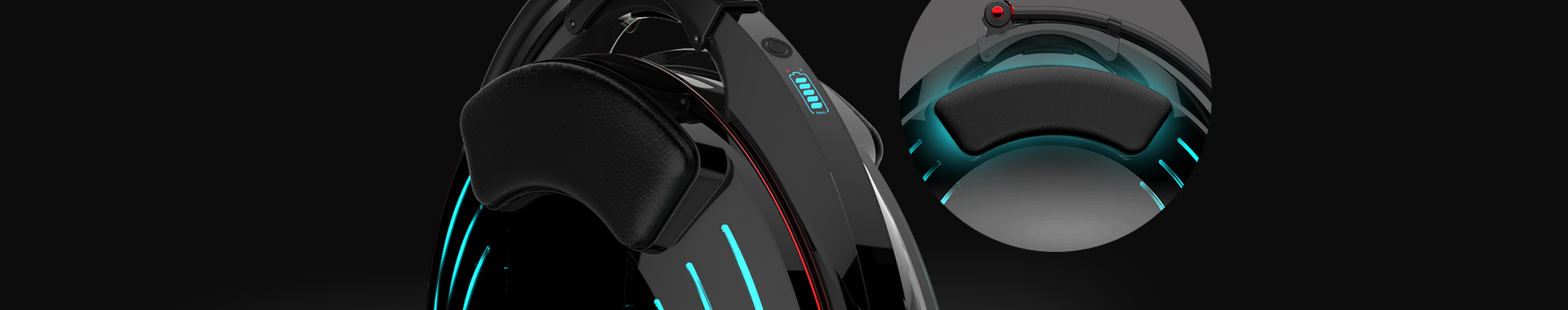

Ergonomics in Design, Upgraded Soft PadErgonomics in Design, Upgraded Soft Pad

Ergonomics in Design, Upgraded Soft Pad

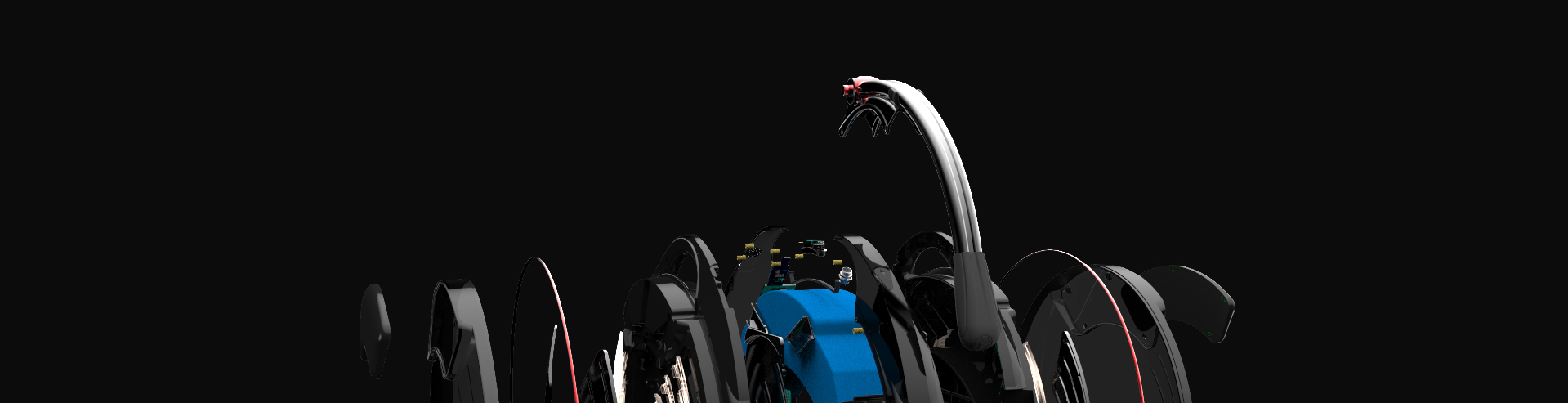

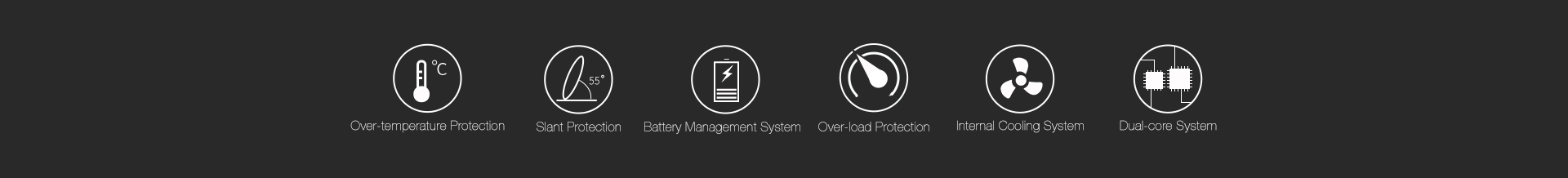

Smart Voice Prompts, Customization Available Bluetooth Stereo Speakers, Moving in Your MusicSmart Voice Prompts, Customization Available Bluetooth Stereo Speakers, Moving in Your MusicSmart Voice Prompts, Customization Available Bluetooth Stereo Speakers, Moving in Your MusicSmart Voice Prompts, Customization Available Bluetooth Stereo Speakers, Moving in Your MusicOver-temperature Protection Slant Protection Battery Management System Over-speed Protection Over-weight Protection Internal Cooling System Dual-core System

Smart Voice Prompts, Customization Available
Bluetooth Stereo Speakers, Moving in Your Music

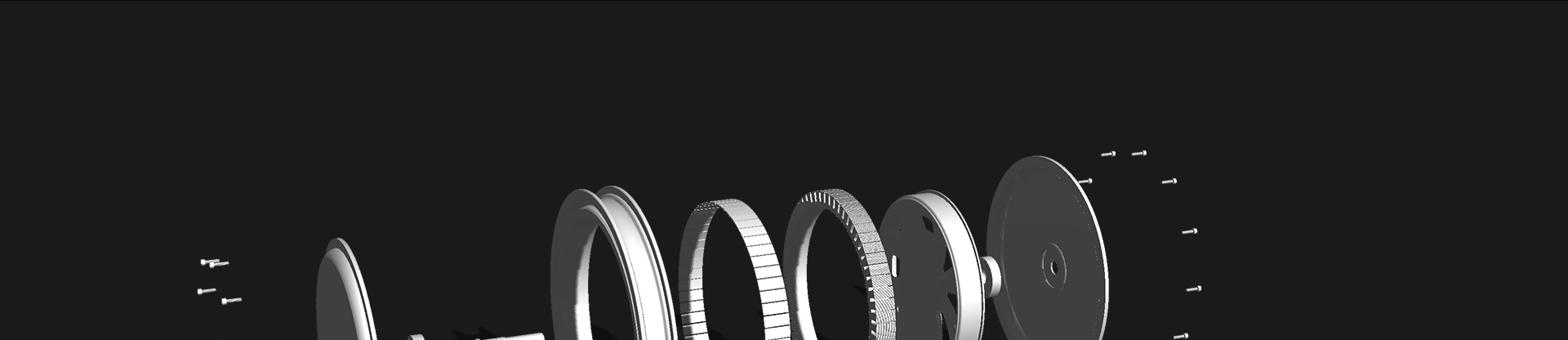

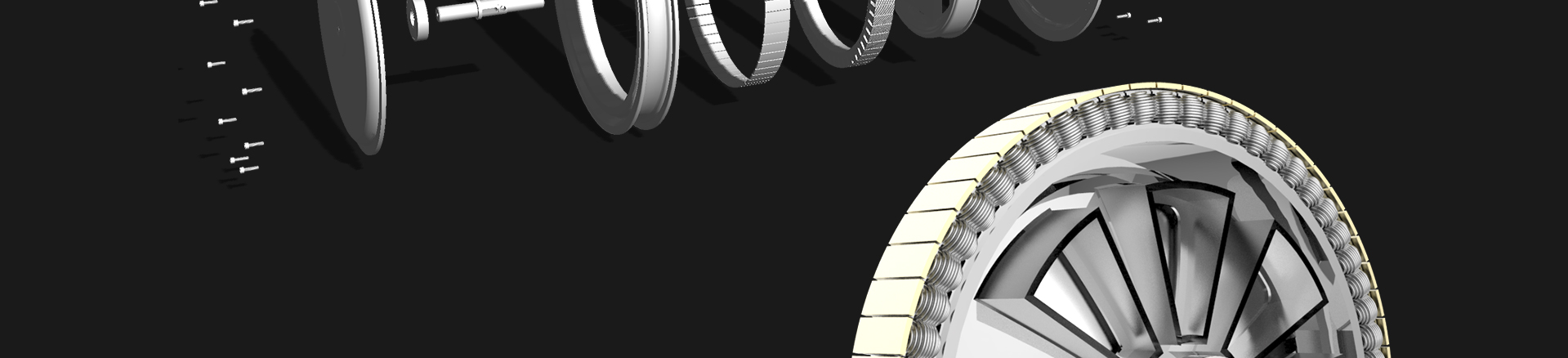

More Powerful Brushless Hub Motor The Max Slope Could Reach 30°

More Powerful Brushless Hub Motor
The Max Slope Could Reach 30°

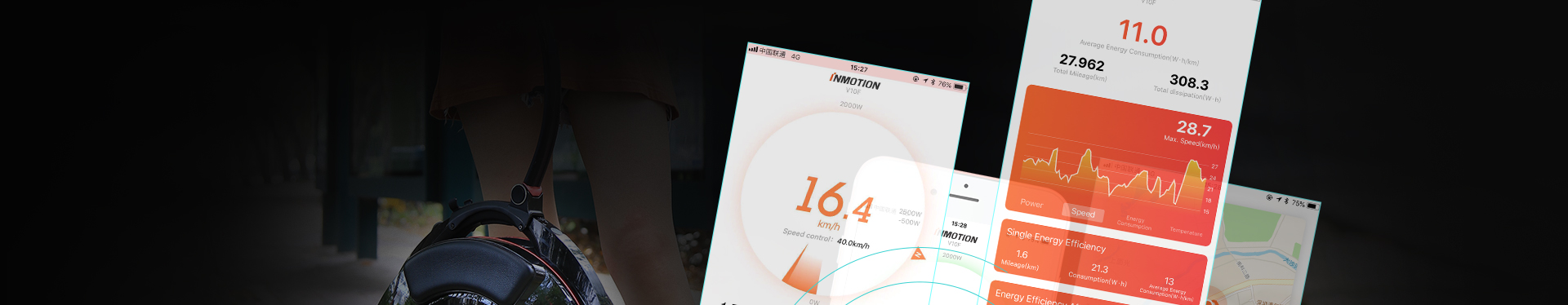

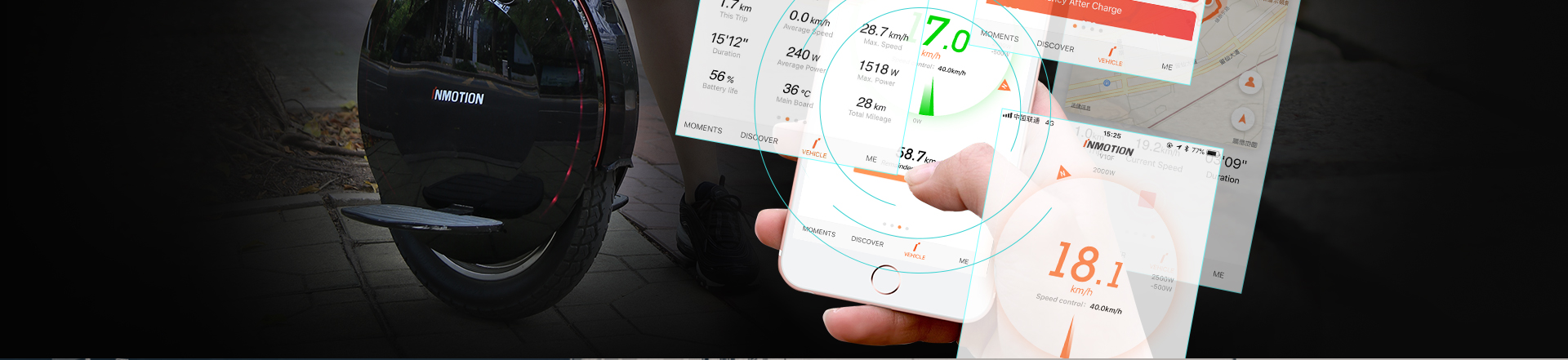

More Powerful Brushless Hub Motor The Max Slope Could Reach 30°Practical AppPractical Appv10 photosv10 photos
ModelV10V10F
Dimension528.5*421*623.5 mm528.5*421*623.5 mm
Net Weight~20.6kg~20.6kg
Range ①~70km (43.5 miles)90~100 km (55.5~62.5 miles)
Factory Default Speed25km/h (15.5mph)25km/h (15.5mph)
Max. Speed ②40km/h (24.9mph)40km/h (24.9mph)
Payload120kg (265lbs)120kg (265lbs)
Max Slope ③30°30°
Charging Time ④~6h~8h
Tire Size16in * 2.5in16in * 2.5in
Factory Default Tire Pressure2.8 bar2.8bar
IP RatingsIP55IP55

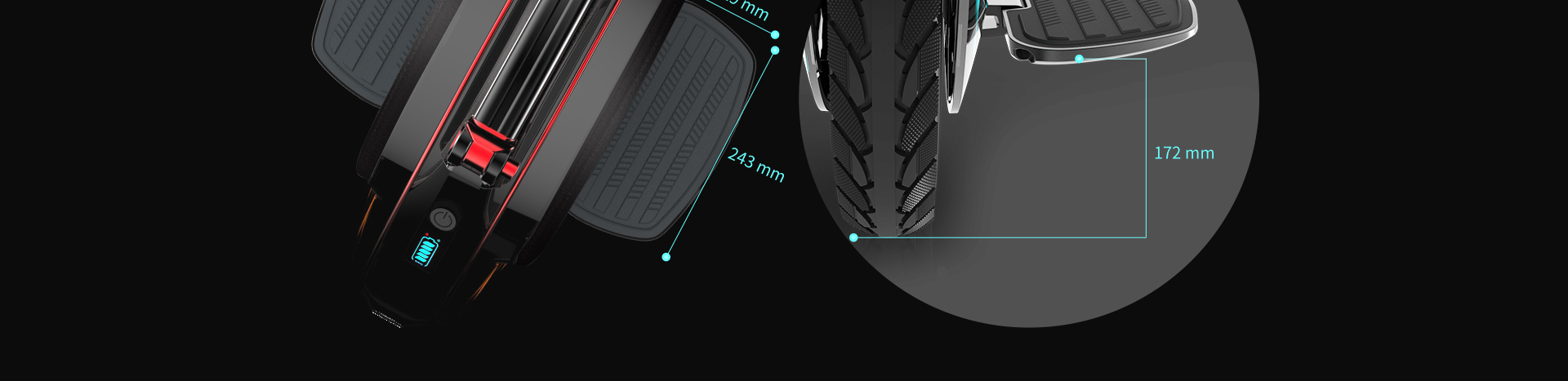

Distance between Footboard and Ground172mm172mm
Working Temperature14~104 ℉ (-10~40 ℃)14~104 ℉ (-10~40 ℃)
Motor Power1800W2000W
Battery Capacity650Wh (8.8Ah)960Wh (12.8Ah)
Input Voltage (Charger)AC 100~240V 50/60 HzAC 100~240V 50/60 Hz
Output Voltage & Current (Charger)DC 84V * 1.5ADC 84V * 1.5A

① This is tested while riding under full power, 75kg load, 25°C, 15km/h average speed on the smooth pavement, riding habit, environment, temp, road condition, load and other factors will affect the ranges.

② The maximum cruising speed is measured at the 25 ℃, the payload of 75 kg, full electric voltage and flat pavement. The factors like driving habit, environmental temperature, road surface condition, payload etc. will affect the speed.

③ This slope was measured in the case when the load is 75kg.

④ Charging time varies with the ambient temperature and the battery capacity that may change in the course of time.
